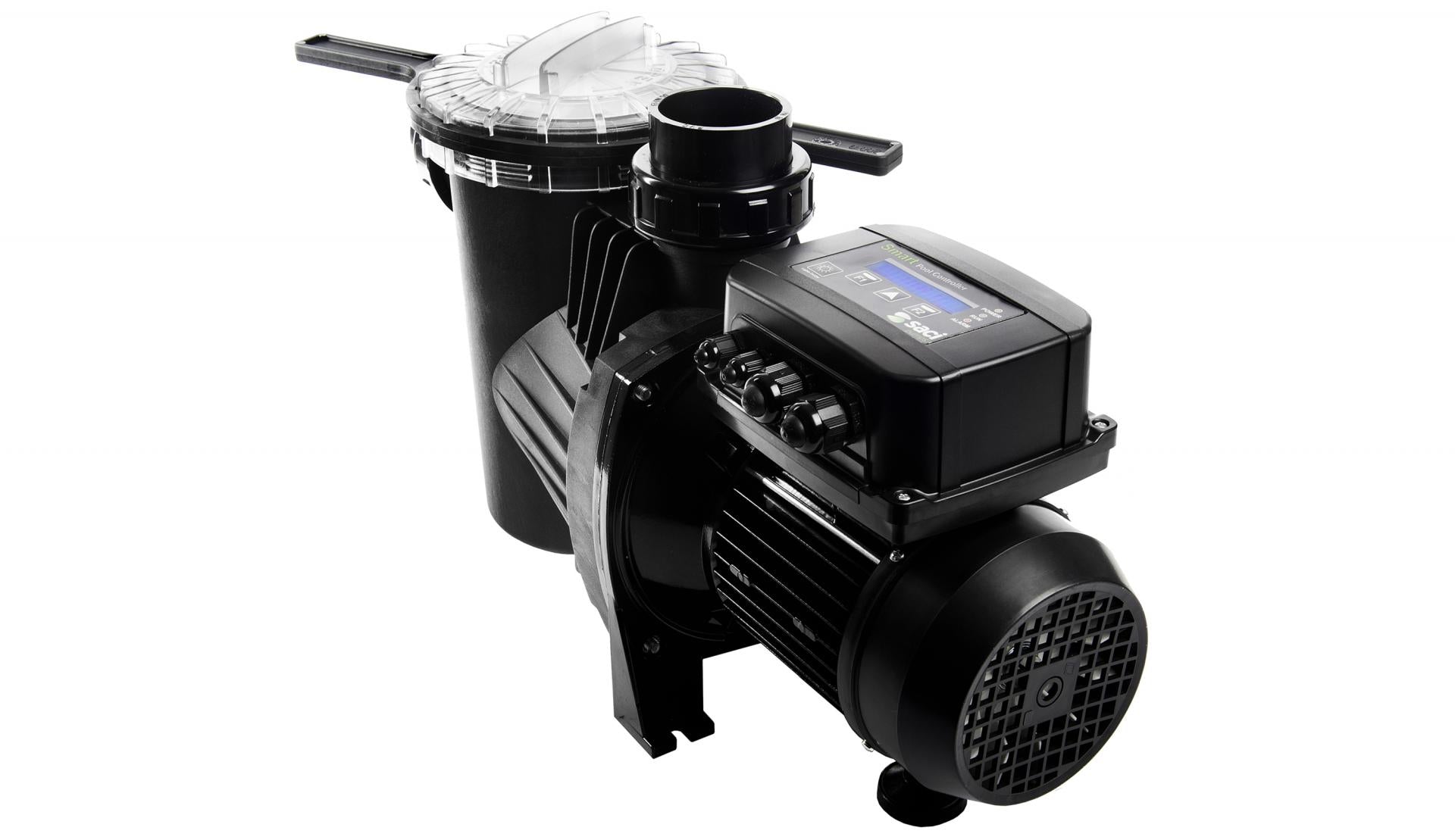

SACI Smart Winner 300 M 3 CV pump with Complete Control – 36104825
SACI Smart Winner 300 M 3 CV pump with Complete Control – 36104825 subject to supplier availability.
Available to order: delivery time to be confirmed
Description
Description
The Smart Winner 300 M combines the hydraulics of the Winner range with SACI's Smart electronic system to centralize control and protection of the filtration installation.
Smart control system
- Filtration cycle programming.
- Independent lighting programming.
- Output for spotlights and salt chlorinator.
- Activation input from heat pump.
- Anti-freeze function via PT100 probe.
- SKIMMING function for surface cleaning.
Protection and maintenance
- Protection against excessive consumption.
- Water shortage and dry-run protection.
- Audible fault alarm.
- Incident history.
- Operating hours counter.
- Basket and sand filter cleaning alerts.
Smart Winner 300 M data
Construction
- Self-priming electric pump with integrated prefilter.
- High-capacity prefilter basket.
- Transparent lid for visual inspection.
- Connections: 2" or PVC Ø63 mm.
Motor
- Power: 3 HP / 2.2 kW.
- Power supply: 230 V single-phase.
- Current: 12.2 A.
- Capacitor: 40 µF.
Hydraulic efficiency
| Dynamic head | Flow rate |
|---|---|
| 6 m.w.c. | 32 m³/h |
| 8 m.w.c. | 30 m³/h |
| 10 m.w.c. | 29 m³/h |
| 12 m.w.c. | 27 m³/h |
| 14 m.w.c. | 23 m³/h |
| 16 m.w.c. | 20 m³/h |
| 18 m.w.c. | 15 m³/h |
| 21 m.w.c. | 12 m³/h |

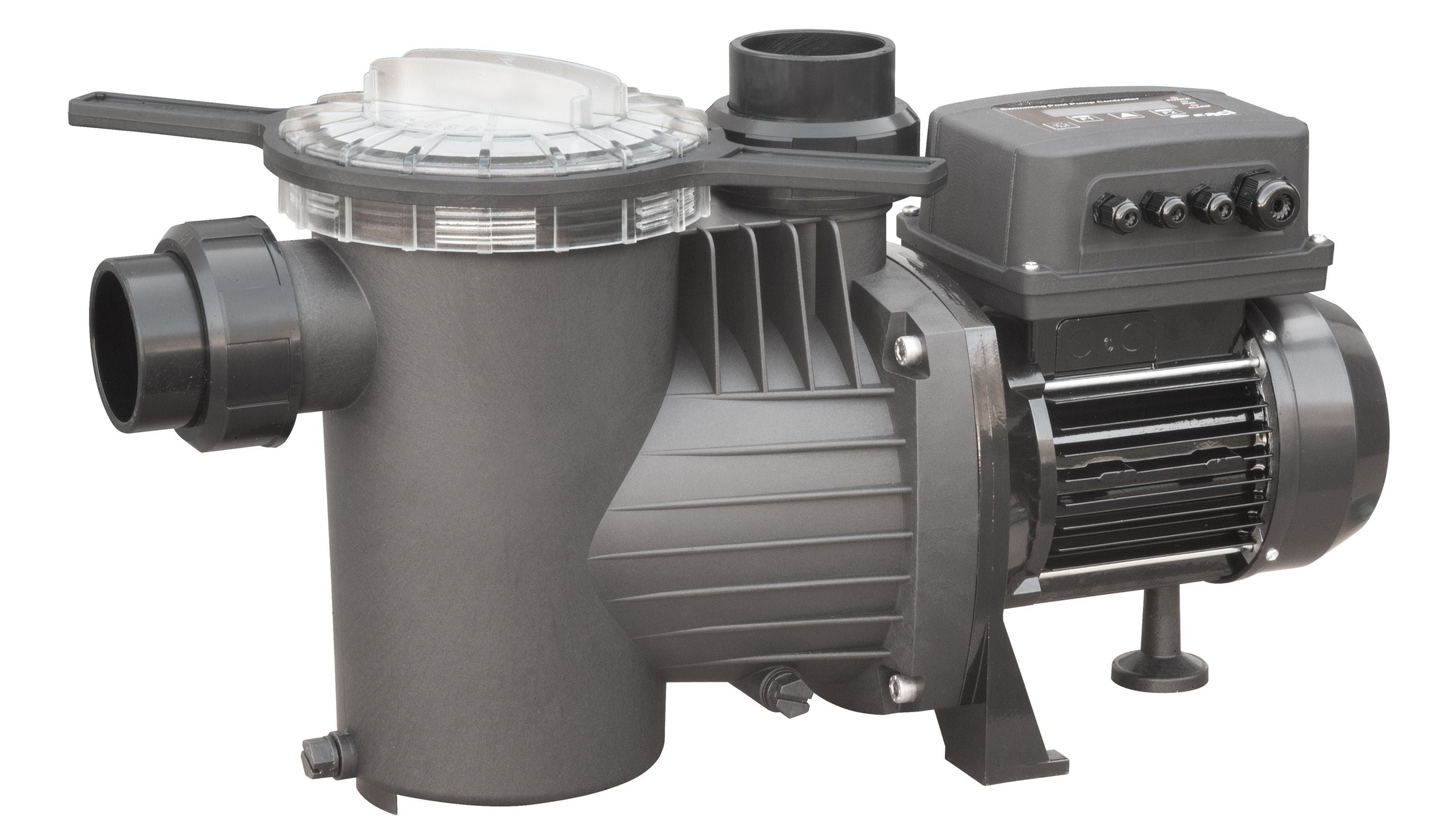

SACI Smart Winner range
Choose the appropriate power according to the installation's operating point. All versions incorporate the control system Smart Winner.
| Model | Power | kW | Reference |
|---|---|---|---|
| Smart Winner 50 M | 0.5 HP | 0.37 kW | 36104815 |
| Smart Winner 75 M | 0.75 HP | 0.55 kW | 36104817 |
| Smart Winner 100 M | 1 HP | 0.75 kW | 36104819 |
| Smart Winner 150 M | 1.5 HP | 1.1 kW | 36104821 |
| Smart Winner 200 M | 2 HP | 1.5 kW | 36104823 |
| Smart Winner 300 M | 3 HP | 2.2 kW | 36104825 |
Frequently asked questions
What is the difference between Winner and Smart Winner?
The Smart Winner incorporates the comprehensive electronic control system to manage and protect the installation directly from the pump.
Can it replace the traditional electrical control panel?
Yes. The Smart system is designed to take over the functions of control and protection normally provided by the electrical control panel from the pool.
