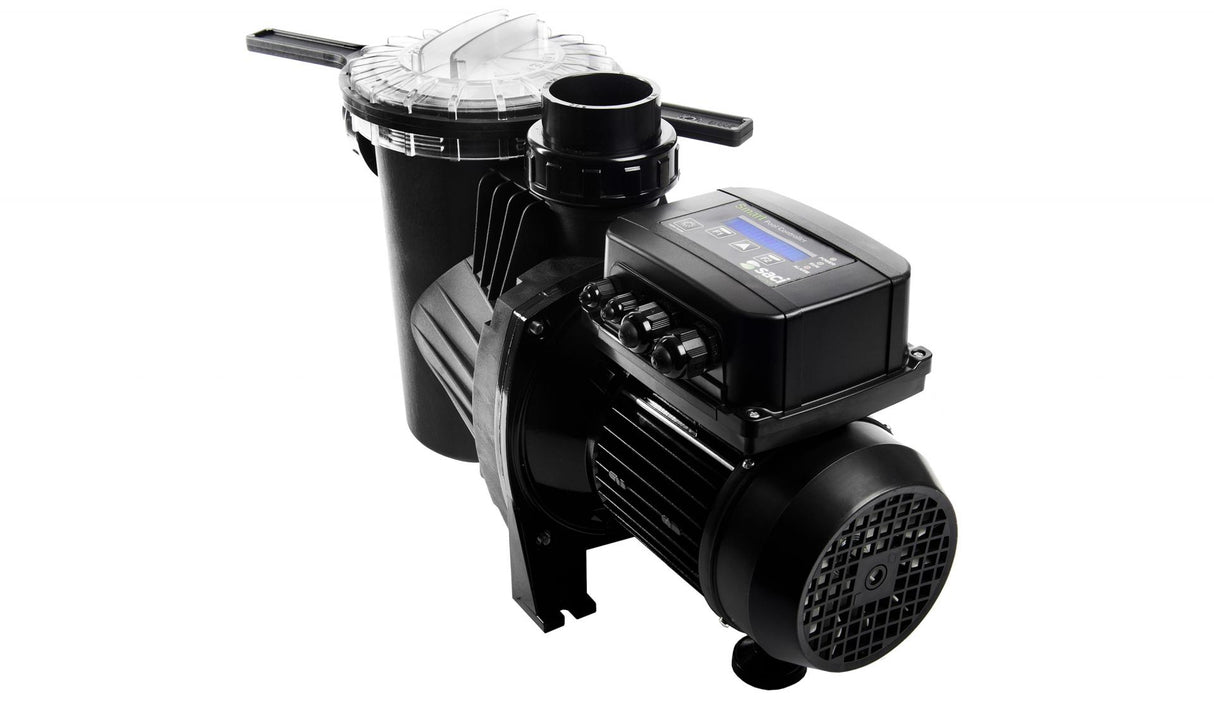

SACI Smart Winner 50 M 0,5 CV pump with Complete Control – 36104815
SACI Smart Winner 50 M 0,5 CV pump with Complete Control – 36104815 subject to supplier availability.
Estimated delivery time: 7 to 10 business days (bulky item)
Description
Description
The Smart Winner 50 M combines the hydraulics of the Winner range with SACI's Smart electronic system to centralize control and protection of the filtration installation.
Smart control system
- Filtration cycle programming.
- Independent lighting programming.
- Output for spotlights and salt chlorinator.
- Activation input from the heat pump.
- Anti-freeze function using a PT100 probe.
- SKIMMING function for surface cleaning.
Protection and maintenance
- Protection against excessive consumption.
- Water shortage and dry-running protection.
- Audible fault alarm.
- Incident history.
- Operating hours counter.
- Basket and sand filter cleaning alerts.
Smart Winner 50 M specifications
Construction
- Self-priming pump with built-in prefilter.
- High-capacity prefilter basket.
- Transparent lid for visual inspection.
- Connections: 2" or PVC Ø63 mm.
Motor
- Power: 0.5 HP / 0.37 kW.
- Power supply: 230 V single-phase.
- Current: 4.4 A.
- Capacitor: 20 µF.
Hydraulic efficiency
| Total head | Flow rate |
|---|---|
| 4 m.w.c. | 17.5 m³/h |
| 6 m.w.c. | 15.6 m³/h |
| 8 m.w.c. | 13.5 m³/h |
| 10 m.w.c. | 11.1 m³/h |
| 12 m.w.c. | 8.4 m³/h |
SACI Smart Winner range
Choose the appropriate power according to the installation's operating point. All versions incorporate the control system Smart Winner.
| Model | Power | kW | Reference |
|---|---|---|---|
| Smart Winner 50 M | 0.5 HP | 0.37 kW | 36104815 |
| Smart Winner 75 M | 0.75 HP | 0.55 kW | 36104817 |
| Smart Winner 100 M | 1 HP | 0.75 kW | 36104819 |
| Smart Winner 150 M | 1.5 HP | 1.1 kW | 36104821 |
| Smart Winner 200 M | 2 HP | 1.5 kW | 36104823 |
| Smart Winner 300 M | 3 HP | 2.2 kW | 36104825 |
Frequently asked questions
What is the difference between Winner and Smart Winner?
The Smart Winner incorporates the comprehensive electronic control system to manage and protect the installation directly from the pump.
Can it replace the traditional electrical panel?
Yes. The Smart system is designed to take over the functions of the control and protection normally provided by the electrical panel from the pool.
