Blue Lagoon Timer UV-C 130 W Amalgam – BH01132
Blue Lagoon Timer UV-C 130 W Amalgam – BH01132 subject to supplier availability.
Estimated delivery time: 3 to 7 business days
Description
Description
UV-C Amalgam for higher flow rates
The Blue Lagoon Timer UV-C 130 W Amalgam is designed for installations requiring a flow rate higher treatment than the 40 and 75 W versions.
Its Amalgam lamp provides radiation powerful and constant UV-C and is less affected by water temperature fluctuations.
According to Blue Lagoon, the system can help reduce the chlorine concentration by up to 50%.
Technical specifications
- Reference: BH01132
- Power: 130 W Amalgam
- Recommended flow rate: 22 m³/h at 30 mJ/cm²
- Maximum flow rate: 23 m³/h
- Maximum pressure: 2 bar
- Housing: 316L stainless steel
- Power supply: 230 V AC · 50 Hz
- Lamp service life: 12,000 hours
- Timer: yes
- Replacement alert: yes
- Flow switch: yes
Installation and operation
Dimensions and connections
- Length: 100 cm
- Unit diameter: Ø70 mm
- Connections: Ø63 mm / Ø50 mm / 1½"
- Weight: 4.5 kg
The equipment includes accessories that allow it to be adapted to installations of Ø63 mm and Ø50 mm, as well as a female thread of 1½".

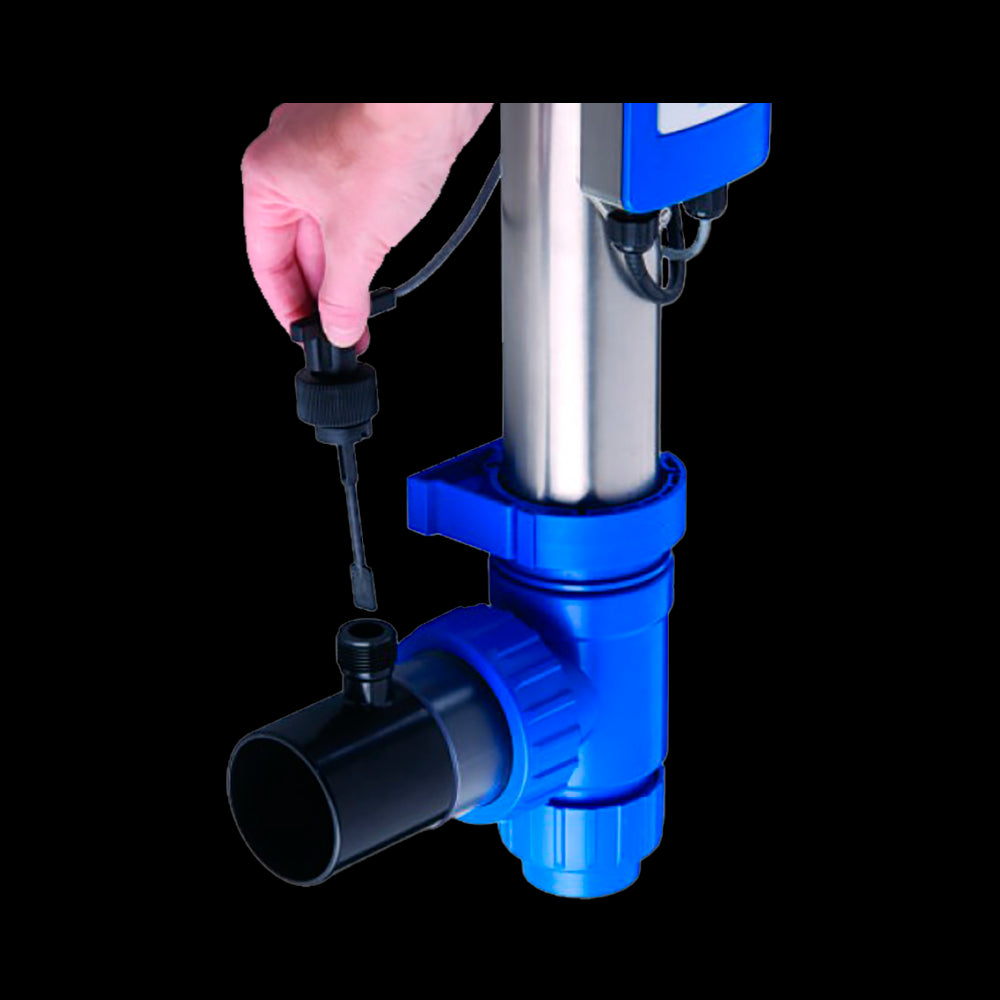

Flow switch
The BH01132 model includes a switch de flujo que apaga la lámpara cuando el caudal es too low.
This function is specific to the version 130 W Amalgam within the Timer UV-C range.

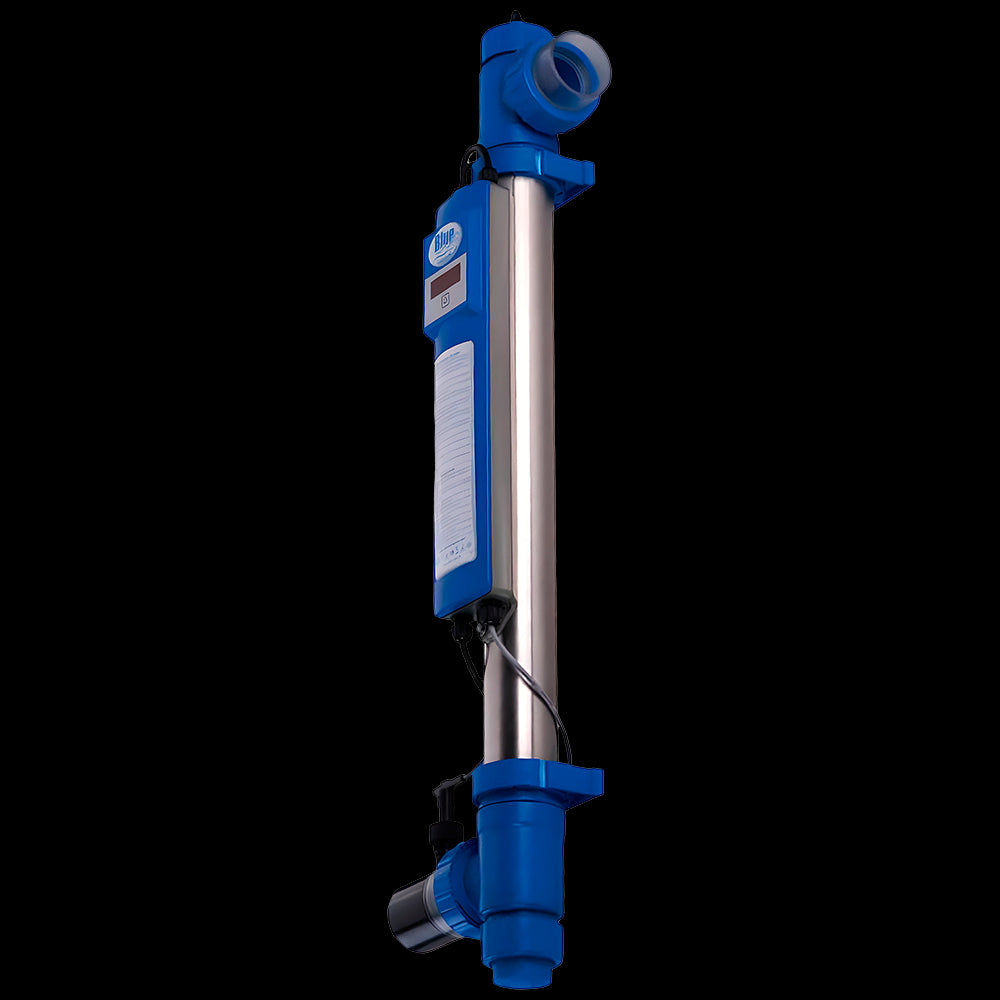

Blue Lagoon Timer UV-C 130 W

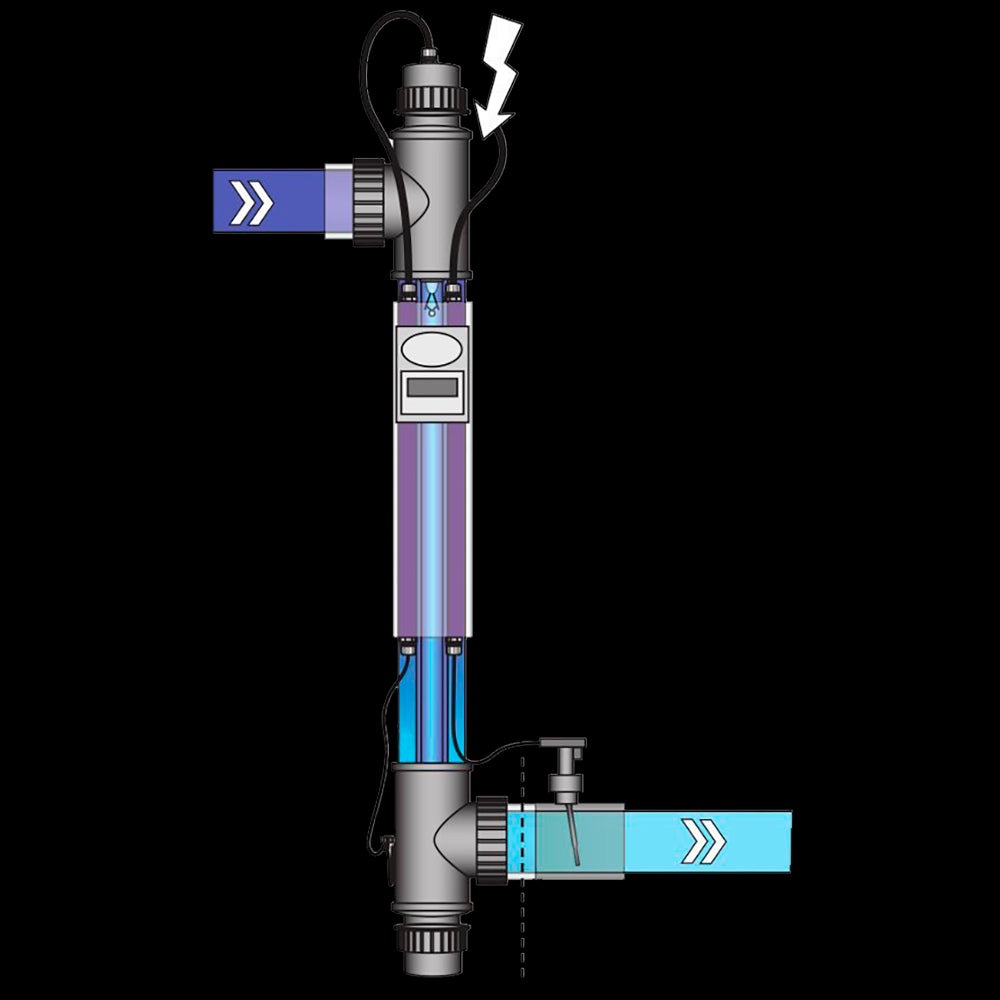

Unit configuration
12,000-hour Amalgam lamp
The BH01132 uses a Philips TUV 130 W 4P-SE Amalgam lamp with a stated service life of 12,000 hours.
The integrated timer records the operating hours and includes an alert to facilitate its replacement.
Greater UV-C utilization
The reflective stainless steel interior enables, according to Blue Lagoon, obtener hasta un 35 % más de rendimiento UV-C.
The housing is made of 316L stainless steel, and the unit includes an electronic ballast.
Which Blue Lagoon Timer UV-C model do you need?
Compare the main differences in the range. The current model is highlighted.
| Reference | Power | Recommended flow rate | Lamp life | Flow switch |
|---|---|---|---|---|
| BH01402 | 40 W | 11 m³/h | 9.000 h | No |
| BH01752 | 75 W | 16 m³/h | 9.000 h | No |
| BH01132 | 130 W Amalgam · Current model | 22 m³/h | 12.000 h | Yes |
Frequently asked questions
What differentiates the BH01132 from the 40 and 75 W models?
It uses a 130 W Amalgam lamp, offers a stated service life of 12,000 hours and includes a flow switch.
What flow rate does the manufacturer recommend?
The recommended flow rate is 22 m³/h at 30 mJ/cm².
What happens if the flow rate is too low?
The built-in flow switch turns off the lamp when detects insufficient flow.
