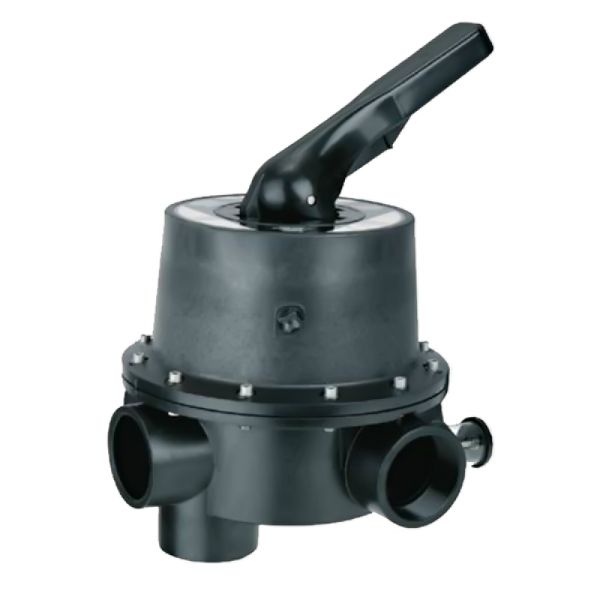

AstralPool 2½" side-mount selector valve without connections – 24838
AstralPool 2½" side-mount selector valve without connections – 24838 subject to supplier availability.
Estimated delivery time: 3 to 7 business days
Description
Description
Features
- AstralPool multiport valve for filtration systems.
- Side-mounted mounting.
- Connections 2½".
- Side-mounted version var. 3.
- Supplied without connections to the filter.
- Manual operation via the top lever.
- Reference: 24838.
6 operating positions
- Filtration
- Backwashing
- Rinsing
- Recirculation
- Waste
- Closed
The lever allows you to select the required function for carrying out the different operations of the filtration system.
Diagram and dimensions
Versions of the 2½" multiport valve
| Reference | Mounting | Connection | Version | Connections to the filter |
|---|---|---|---|---|
| 24837 | Side-mounted | 2½" | Var. 3 | With connections to the filter |
| 24838 | Side-mounted | 2½" | Var. 3 | Without connections to the filter |
Frequently asked questions
Does the AstralPool 24838 include the connections to the filter?
No. Reference 24838 corresponds to the version without connections to the filter.
What is the difference between 24837 and 24838?
Both belong to the 2½" side-mounted range. The stated difference is that 24837 is supplied with connections to the filter, while 24838 is supplied without them.
How many positions does the valve have?
It has six positions: filtration, backwashing, rinsing, recirculation, waste and closed.
Is it a side-mounted valve?
Yes. Reference 24838 corresponds to a side-mounted multiport valve.
Can I change the position while the pump is running?
No. On a conventional manual multiport valve, the pump must be stopped before changing the lever position.
