Zodiac FloPro VS Variable Pool Pump
Zodiac FloPro VS Variable Pool Pump is backordered and will ship as soon as it is back in stock.
Transit time 3 - 5 days
Description
Description

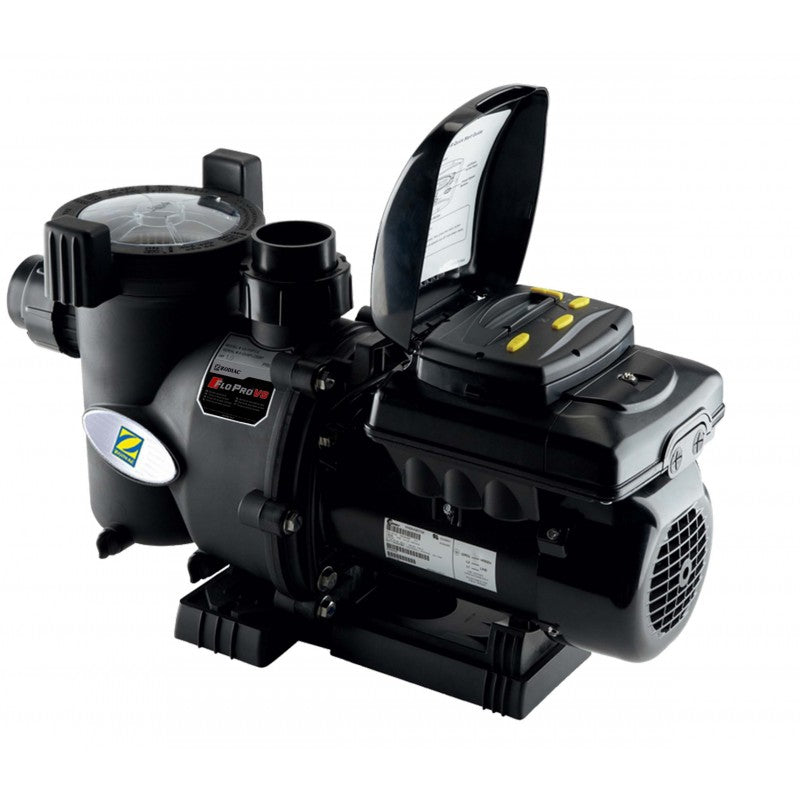

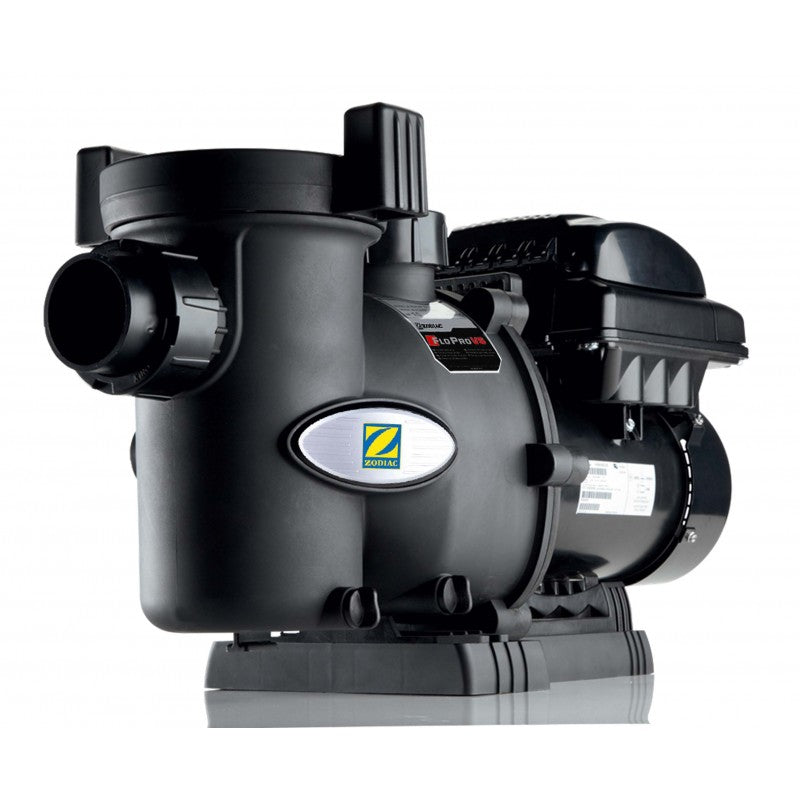

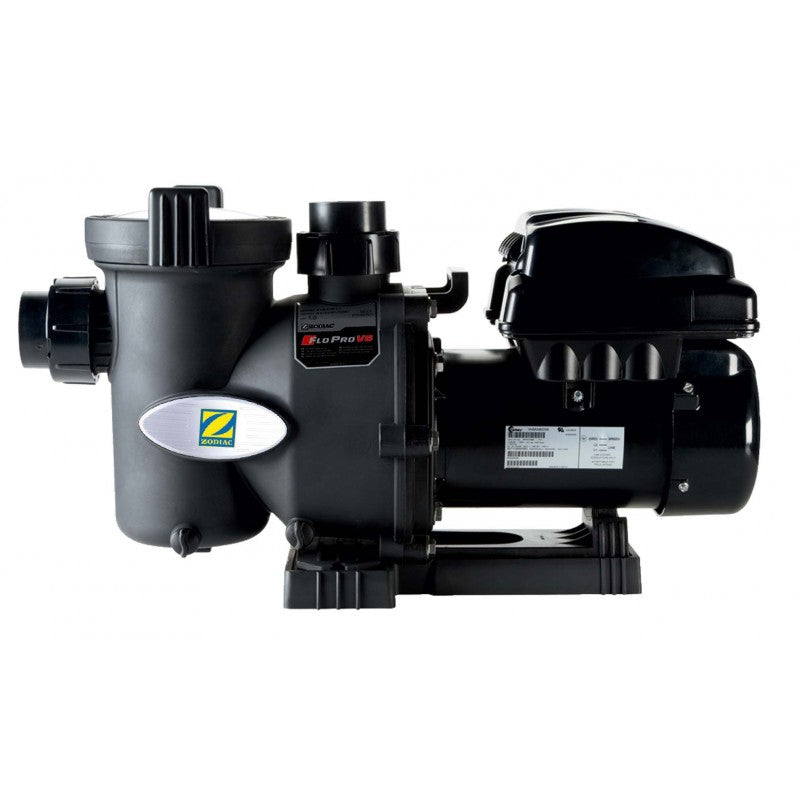

The Zodiac FloPro VS Variable Speed Pool Pump is a pump that thanks to the variable speed, the pump can run for more hours a day at a lower speed. In this way, the water circulates more slowly in the filter, improving the filtration quality.
Thanks to its TEFC* synchronous permanent motor, it uses ECM** technology, Zodiac FloPro™ VS allows you to reduce electricity consumption by up to 90%. In this way, the pump runs silently allowing a payback compared to single speed pumps of 2 to 3 years. FloPro™ VS allows you to memorize up to 8 different speeds over a range of 600 to 3,450 RPM. This allows you to assign a specific speed for the different functions of the pool: normal filtration, backwashing, heating, cleaning and water animation...
Description

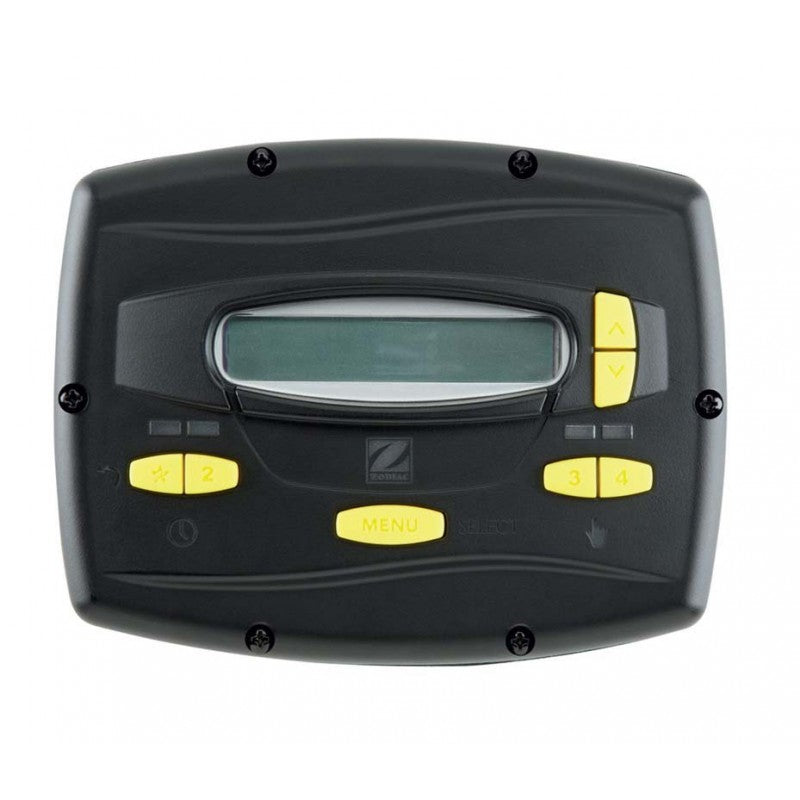

• User interface: 2-line backlit LCD display, removable interface (removable kit included)
• Languages: 6 (FR-EN-ES-DE-IT-NL)
• Mode(s) of operation: Normal autonomous, connected to Zodiac® AquaLink® TRi automation, external activation by dry contact
• Clock/Timer: 24h clock, timers (speeds 1 & 2), operating duration (speeds 3 & 4)
• Number of speeds: 8 programmable speeds (+/- 10 RPM) and assignable
• Priming: Automatic at start, adjustable duration and priming speed
• Safety: Electronic frost protection Automatic stop in case of overvoltage or low voltage
• Compatible Pipe: DN50 mm & DN63 mm (2” threaded pump inlet/outlet)
• Usage: Clear water and salt water up to 6 g/L (6,000 ppm)
Technical Features
| Engine type | Permanent motor synchronous motor (ECM* technology), TEFC**, class F insulation |
| Performance | > 80% (according to IE3 regulations) |
| Useful power (P2) | 1.65 HP / 1.23 kW |
| Flow rate 10 mce | 34.1 m³/h (at 3450 RPM) |
| Maximum flow | 29.5 m³/h |
| Maximum manometric height | 21.6 mce |
| Maximum water temperature | 35º C |
| Speeds | 600-3450 RPM (adjustable in 10 RPM steps) |
| Protection index | IPX4 |
| Connection for external controllers | RS485 for AquaLink TRi connection, dry contact for external activation. (speeds 1 to 4) |
| Food | 50Hz 220-240VAC |

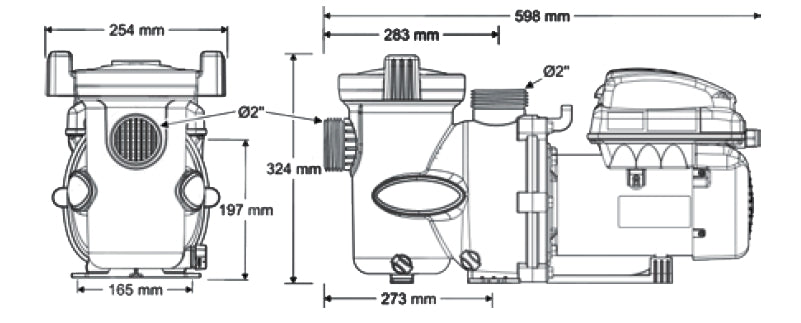

Weight and dimensions
| Length | 59.8cm |
| Height | 32.4 cm (on additional plinths) |
| long | 25.4cm |
| Weight (pump only) | 17kg |
| Guarantee on the body | 5 Years |
| Guarantee on all parts | 3 Years |
