Filtration monobloc 4,000l/h - Ø320 GRE FS320

Filtration monobloc for above ground pools. Model. FS320.

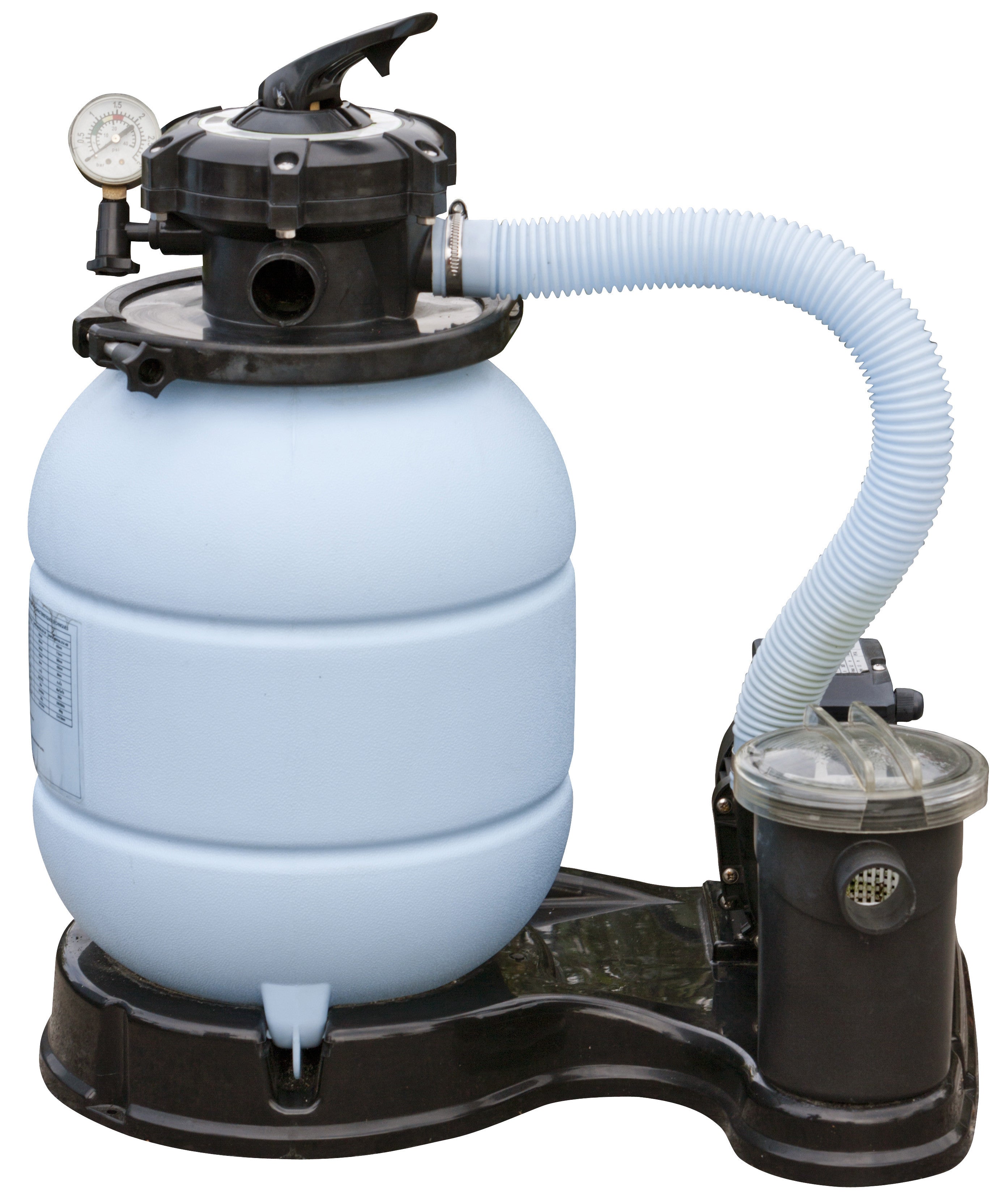

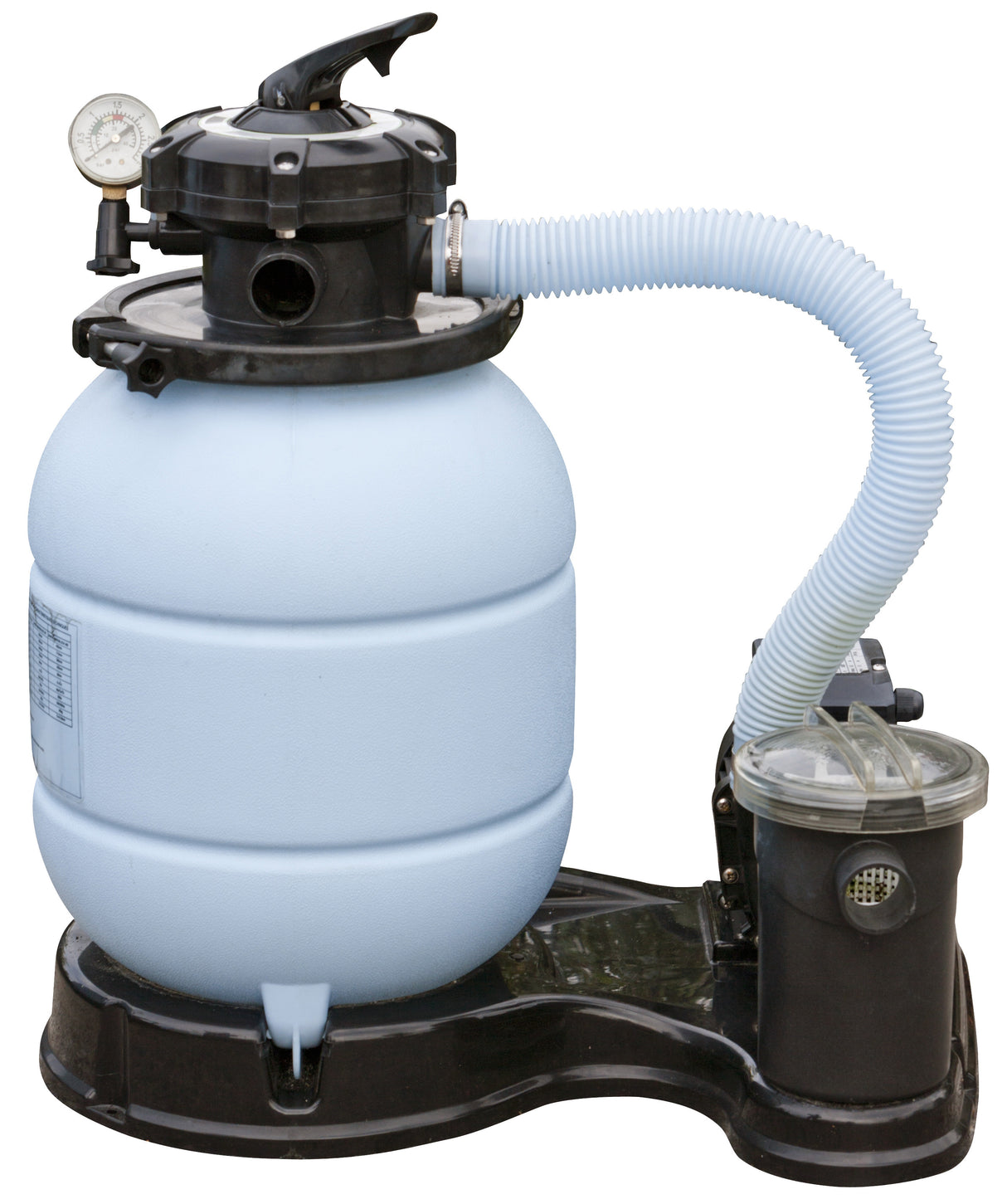

Complete filtration set consisting of: circulator pump with prefilter, sand filter, 5-way selector valve, pressure gauge... all mounted on a plastic bench, with the necessary pipe for the connection between filter and pump.

This product is certified according to the French standard NF P 90-318, which guarantees that it complies with established safety regulations.

Sand filters are the most popular and require the least maintenance. Sand is a natural filtering agent used by nature, and this principle is applied to this filtration system, the water is cleaned by passing through the sand tank of the filtration monobloc. One of the great advantages of this purification system is its ease of use, since it is not necessary to dismantle any part of the filter to clean it, since this operation is carried out by reversing the water flow.

Features of the FS300 monobloc unit:

- Tank Ø 300 mm.
- Group flow rate 4,000 liters/hour.
- Pump power 180W – 0.24CV/HP.
- Pump with prefilter.
- Sand load (not included) ±20kg.
- 5-way selector valve: washing, rinsing, filtration, emptying and closing.

Other models of monobloc equipment

Reference.	FS250NP	FS300NP	FS300	FS400	FS400T	FS500
Diameter (mm.)	250	300	300	400	400	500
Flow rate (liters/hour)	4.000	4.000	4.000	6.000	6.000	8.00
Pump Power (W-CV)	180-0,24	180-0,24	180-0,24	230-0,31	230-0,34	550-0,75
Position selector	5	5	5	5	5	5
Silex sand load (Kgs.)	±14	±20	±20	±40	±40	±85
EAN 13	8412081264394	8412081257488	8412081252315	8412081252322	8412081257495	8412081252339
