Bomba Wiper 90 1 CV - 230 V monofásica para hidromasaje y spa de Espa

Espa  |  SKU: 215079
177,52 €
Tax included, shipping and discounts calculated at checkout.

• Uso en piscinas, spas y hidromasajes.• Cuerpo hidráulico en tecnopolímero.• Incluye uniones de 50 mm.• Compatible con agua salada hasta 7 g/l.

Transit time 3 - 5 days

Secure payment and installments + info

Free shipping on orders > 100€ in peninsula + info

Personalized Advice Contact

Money Back Guarantee + info

Description

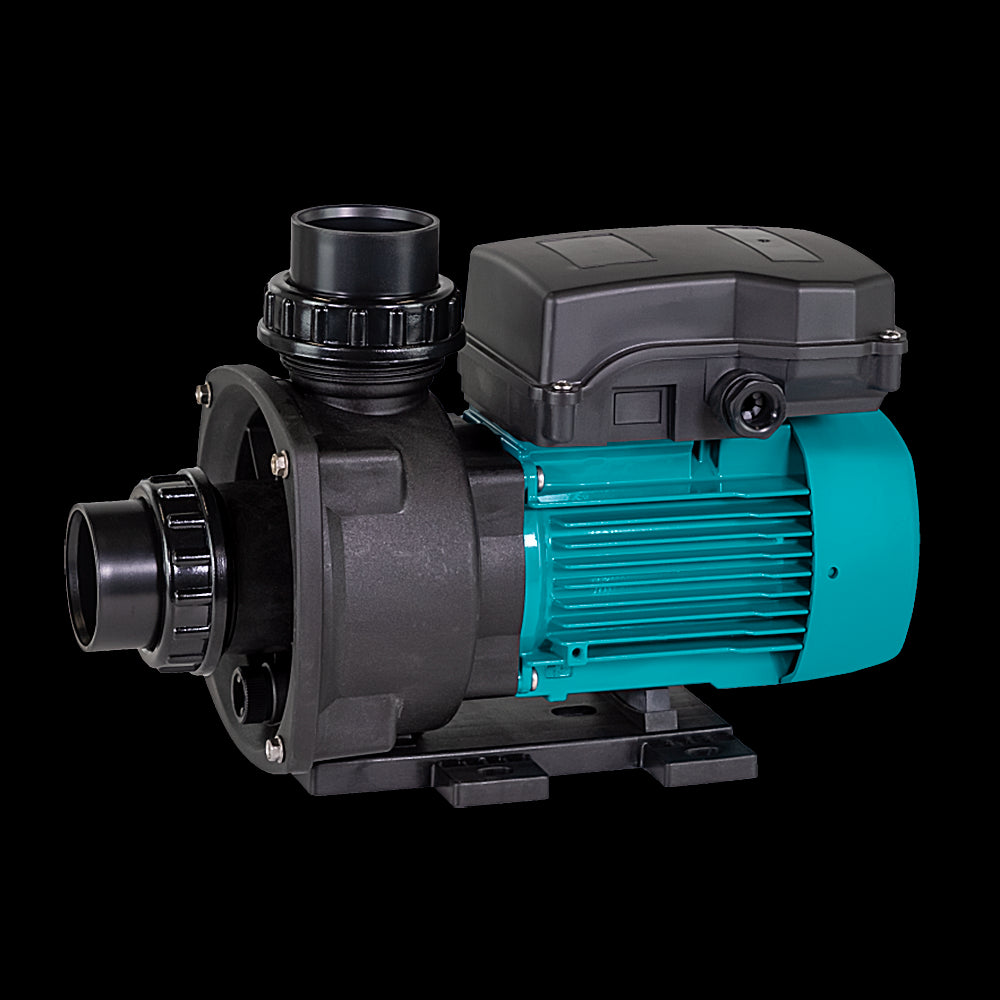

The Wiper 50 0.33 CV - 230 V single phase is a monoetapa centrifugal pump designed for water recirculation in spas, removable swimming pools and hydromassage.

Designed with a compact and robust design.

Ancient reference for this article: 203170.


Characteristics

The Spanish Wiper bombs are made with the following materials:

  • Body of the pump and drive manufactured in technopolymer, with purge cap.
  • The engine axis is 100 % manufactured in AISI 431 stainless steel.
  • The engine housing is made of aluminum.
  • The special mechanical closure is manufactured in graphite and steatita.
  • Boards made of NBR/EPDM.
  • It is supplied with 50 mm connections.


The Wiper pump engine has the following characteristics:

• 2 poles asynchronous engine.
• IPX5 protection
• Class F insulation.
• Incorporated thermal protection.
• Continuous service.

Technical characteristics Wiper bombs

1-230 V (m) I (a)

P1

P2

C(µF)

l/min 25 50 100 150 200 250 300 350
Reference 1-230V 1-230V KW/CV m³/h 1.5 3,0 6,0 9,0 12 15 18 21
215079 2,30 0,5 0,24/0,33 12 MCA 10 9,4 7,9 6 3,6 1 - -
215080 2,90 0,65 0,65/0,37 12 11 10,6 9,7 8,5 6,6 4,5 2,2 -
225081 3,74 0,85 0,74/1,0 12 11,7 11,3 10,5 9,6 8,4 6,7 4,6 2,2




Wiper pump dimensions (mm.)

Model TO B C D AND F/g H Yo J K Kg
Wiper 50 296 177 155 85 72 50 145 74 102 Ø9 5,7
Wiper 70 296 177 155 85 72 50 145 74 102 Ø9 6,0
Wiper 90 296 177 155 85 72 50 145 74 102 Ø9 6,9

Performance curve at 2900 rpm
