Wiper 70 pump, ½ HP - 230V single-phase for hydromassage and spa. Spy
Wiper 70 pump, ½ HP - 230V single-phase for hydromassage and spa. Spy is backordered and will ship as soon as it is back in stock.
Transit time 3 - 5 days
Description
Description

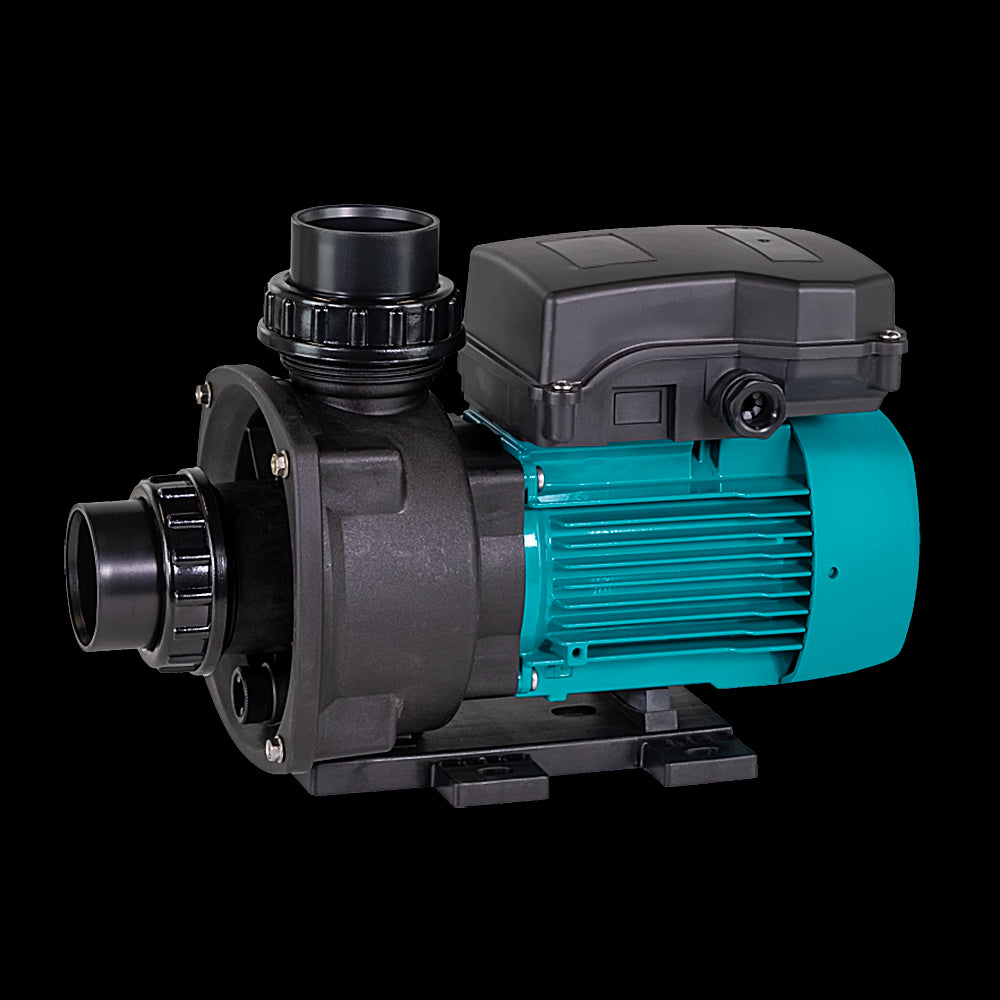

The Wiper Pump 70 ½ HP - 230 V single-phase is a single-stage centrifugal pump designed for water recirculation in spas, removable pools and whirlpools.
Designed with a compact and robust design.
Old reference for this item: 203171.
Features
Espa Wiper pumps are manufactured with the following materials:
- Pump body and impeller made of technopolymer, with drain plug.
- The motor shaft is made of 100% AISI 431 stainless steel.
- The motor casing is made of aluminum.
- The special mechanical seal is made of graphite and soapstone.
- Gaskets made of NBR/EPDM.
- Supplied with 50 mm connections.
The Wiper pump motor has the following characteristics:
• 2-pole Asynchronous Motor.
• IPX5 protection
• Class F insulation.
• Built-in thermal protection.
• Continuous service.
Wiper pump technical characteristics
| 1-230V(M) | I (A) | P1 |
P2 |
c(µF) |
l/min | 25 | 50 | 100 | 150 | 200 | 250 | 300 | 350 |
| Reference | 1-230V | 1-230V | kW/hp | m³/h | 1.5 | 3,0 | 6,0 | 9,0 | 12 | 15 | 18 | 21 | |
| 215079 | 2,30 | 0,5 | 0,24/0,33 | 12 | mca | 10 | 9,4 | 7,9 | 6 | 3,6 | 1 | - | - |
| 215080 | 2,90 | 0,65 | 0,65/0,37 | 12 | 11 | 10,6 | 9,7 | 8,5 | 6,6 | 4,5 | 2,2 | - | |
| 225081 | 3,74 | 0,85 | 0,74/1,0 | 12 | 11,7 | 11,3 | 10,5 | 9,6 | 8,4 | 6,7 | 4,6 | 2,2 |
|
|
Performance curve at 2900 rpm
|
