Description
Description
|

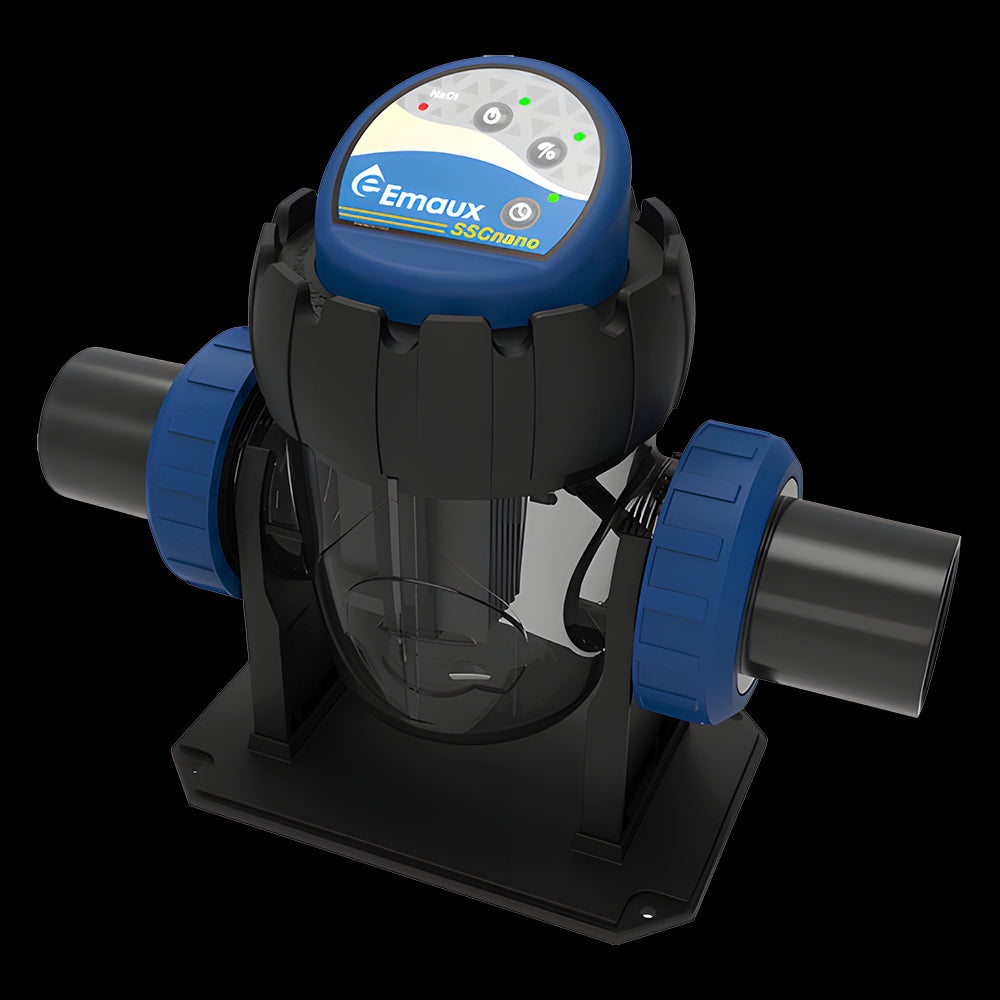

The Emaux SSCnano salt chlorinator is especially suitable for small pools, both in-ground and above ground, up to 50 m³. Its extremely simple installation and small volume make it ideal for equipment installations in small technical rooms, you can have your equipment working in a very short period of time. It is equipped with a simple user interface that greatly facilitates programming, allowing you to adjust chlorine production according to your specific needs and maintain an adequate level of disinfectant in the pool. You do not have superchlorination mode, cover detector or Wi-Fi/Bluetooth connection. Advantages of SSCnao chlorinator: • ON/OFF operation • Control panel integrated into the cell • Built-in flow switch • Automatic cell cleaning by inversion • Temperature sensor • Long lasting cell |
 |
POOLSTYLE CHLORINATORS | ||||||||
| Code | Model | Food | Salt level | Chlorine production | Max working pressure | Connection | Minimum flow | Max volume swimming pool |
| 9130048 | SSCnano 10 | 110-240V / 50-60Hz | 3500ppm | 10g/hr | 2.5 bar | 1½"/50mm - 32/38mm | 3 m³/h | 50 m³ |
| 88380702 | SSCmini 20 | 220-240V / 50-60Hz | 3000ppm | 20g/hr | 2.5 bar | 1½"/50mm -2"/63mm | 3 m³/h | 90 m³ |
| INSTALLATION DIAGRAMS | |||||||||||||||||||||||||
 |
EMAUX SSCNANO CHLORINATOR DIMENSIONS
|
