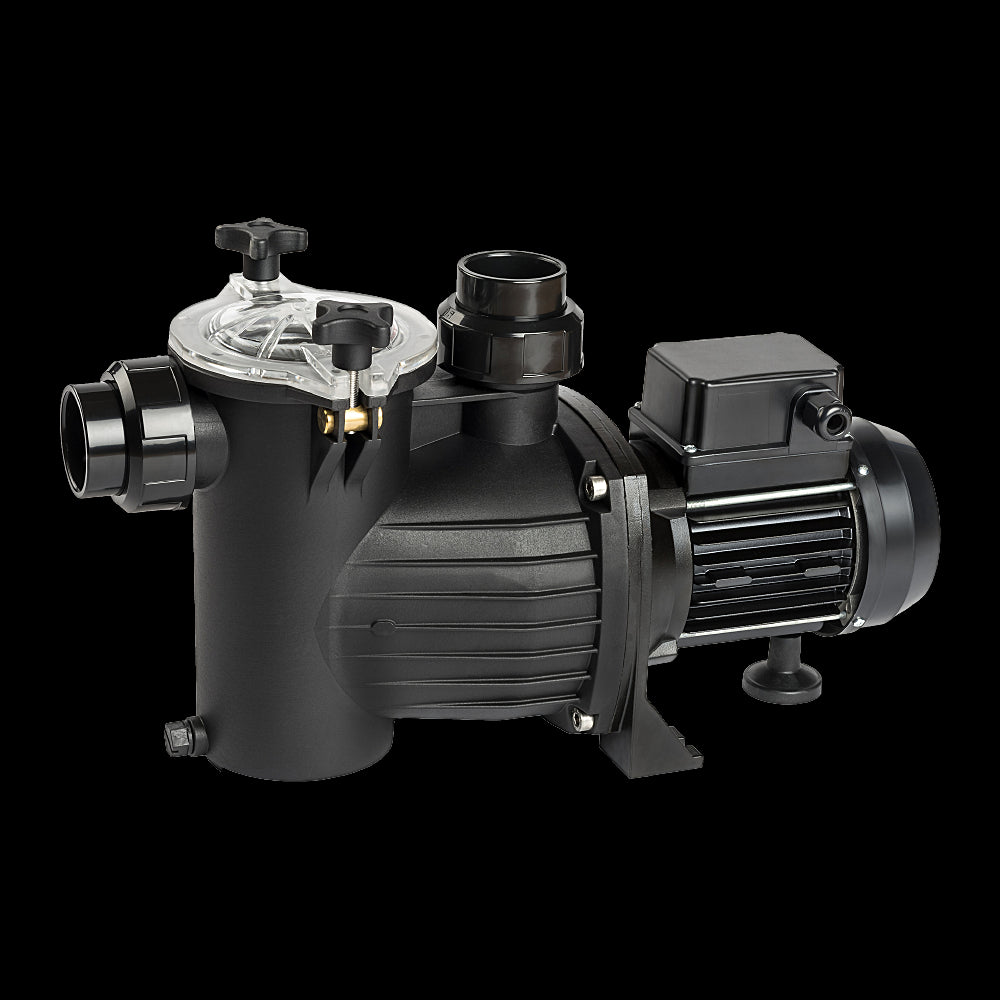

Optima Pumps
Circulation/filtration pump for in-ground pools, designed and manufactured according to the highest standards of precision and quality for safe, reliable operation and long life. Plus, with new technology built in, they're whisper quiet.
- Self-priming pump with built-in prefilter and excellent performance.
- Pre-filter with transparent polycarbonate lid, closure with handles.
- Large pre-filter basket.
-
TWO CONNECTION POSSIBILITIES:
- 1 ½" female thread connection
- Connection for ø 50 PVC pipe to be glued. (Quick links for gluing are supplied.)
- Cataphoresis painting.
- Aluminum support base
- AISI-304 stainless steel screws
- Asynchronous motor at 2900 rpm (3450 rpm @ 60 Hz)
- Maintenance-free lubricated bearings.
- Class F insulation, IP-55 Grade.
There are other variants of the product available:
This same pump is available with other powers. You can select another model by clicking on any of the references in the table below:
| Reference | Model | M³/H | I/O | Optima pump performance curve |
| 36106002 | Optima 0.25 HP Mono Pump | 4 | 1 ½" |
 |
| 36106012 | Optima Pump 0.33 HP Mono | 5,5 | 1 ½" | |
| 36106022 | Optima 0.5 HP Mono Pump | 7 | 1 ½" | |
| 36106032 | Optima 0.75 HP Mono Pump | 10 | 1 ½" | |
| 36106033 | Optima Pump 0.75 HP Three-Phase | 10 | 1 ½" | |
| 36106042 | Optima 1 HP Mono Pump | 13 | 1 ½" | |
| 36106043 | Optima 1 HP Three-Phase Pump | 13 | 1 ½" | |
| 36106052 | Optima 1.5 HP Mono Pump | 14,5 | 1 ½" | |
| 36106053 | Optima Pump 1.5 HP Three Phase | 14,5 | 1 ½" |
| OPTIMA PUMP DIMENSIONS | ||||||||||||||
 |
Model | A | b | c | d | E | f | g | h | I | J. |
DNA ID |
Net Kg. |
Gross Kg. |
| OPTIMA 25 | 191 | 205 | 470 | 285 | 95 | 233 | 140 | 180 | 265 | 197 | 1½ | 9,8 | 10,8 | |
| OPTIMA 33 | 191 | 205 | 470 | 285 | 95 | 233 | 140 | 180 | 265 | 197 | 1½ | 9,8 | 10,8 | |
| OPTIMA 50 | 191 | 205 | 470 | 285 | 95 | 233 | 140 | 180 | 265 | 197 | 1½ | 9,8 | 10,8 | |
| OPTIMA 75 | 191 | 205 | 470 | 285 | 95 | 233 | 140 | 180 | 265 | 197 | 1½ | 9,8 | 10,8 | |
| OPTIMA 100 | 191 | 205 | 470 | 285 | 95 | 233 | 140 | 180 | 265 | 197 | 1½ | 9,8 | 10,8 | |
OPTIMAL PUMP BREAKDOWN
 |
1 -Knob 2 - Pre-filter cover 3 - Prefilter gasket 4 - Pre-filter basket 5 - Pump Body 6 - Drain plug 7 - Drain plug gasket 8 - Diffuser gasket 9 - Diffuser 10 - Turbine 11 - Mechanical seal 12 - Pump body gasket 13 - Stamp holder disc 14 - Body fixing screw 15 - Knob holder cylinder 16 - Front retainer IP-55 17 - Fittings + gaskets kit |
18 - Pump support 19 - Body fixing nut 20 - Front bearing 21 - Rotor with shaft 22 - Rear bearing 23 - Motor stator + casing 24 - Terminal box 25 - Terminal box cover screw 26 - Terminal box cover 27 - Capacitor 28 - Terminal box gasket 29 - Rear engine cover 31 - Fan 32 - Fan cover 33 - Lasaje Washer 34 - Engine stud 35 - Fan cover screw |
