Innowater SMC10 bipolar cell
innowater
| SKU:
CELLSMC10
368,93 €
Unit price
/
Unavailable
Tax included, shipping and discounts calculated at checkout.

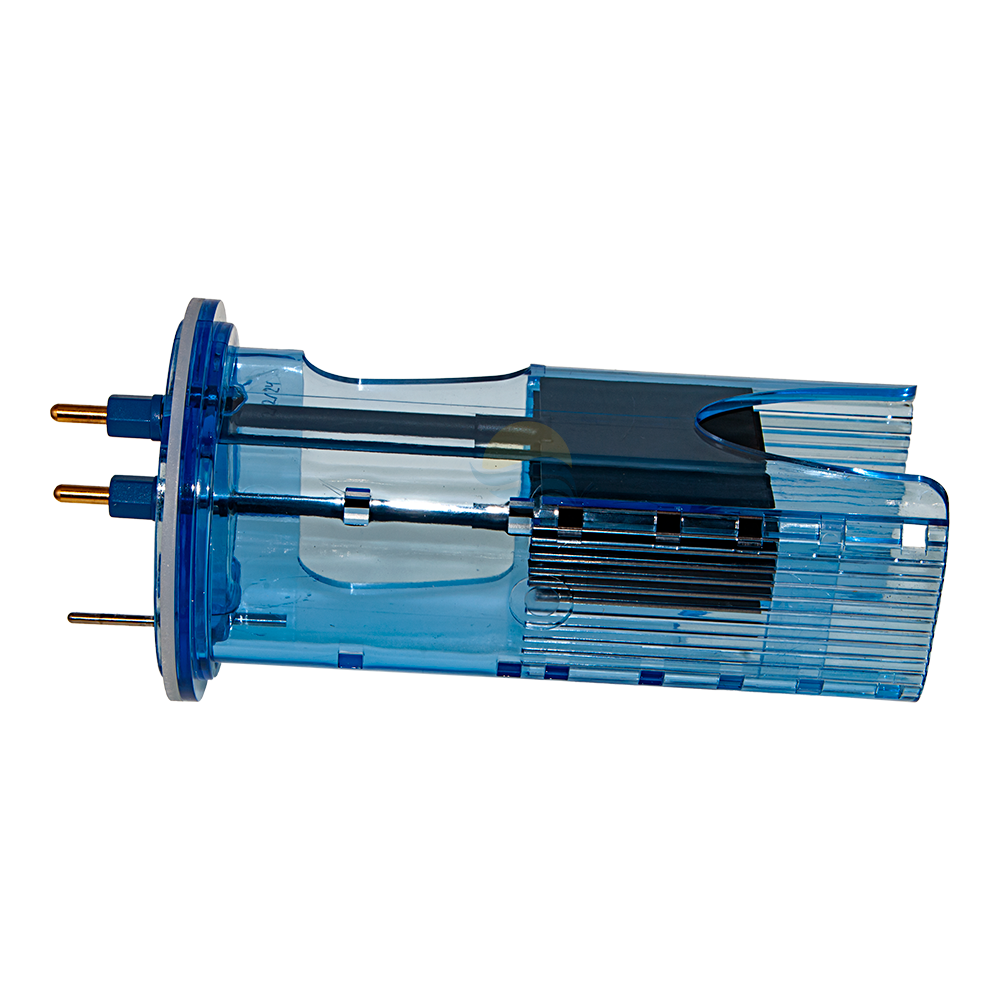

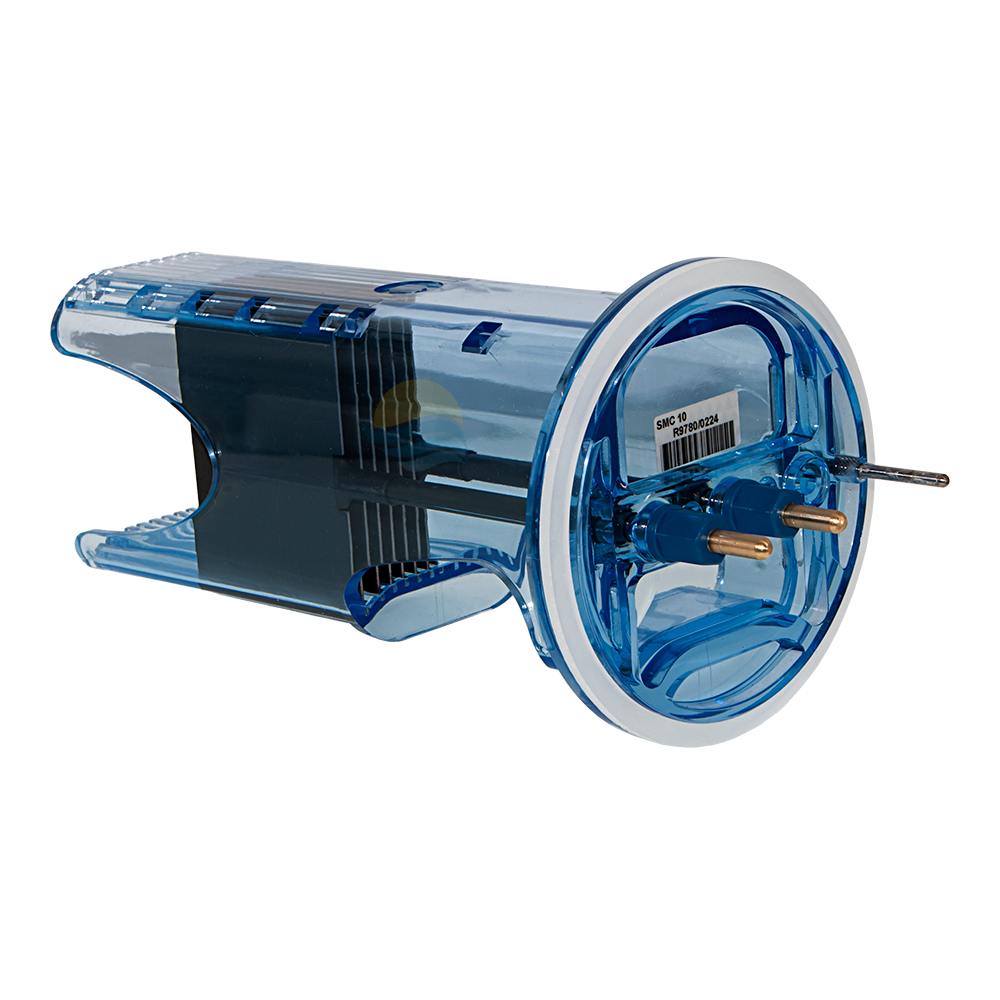

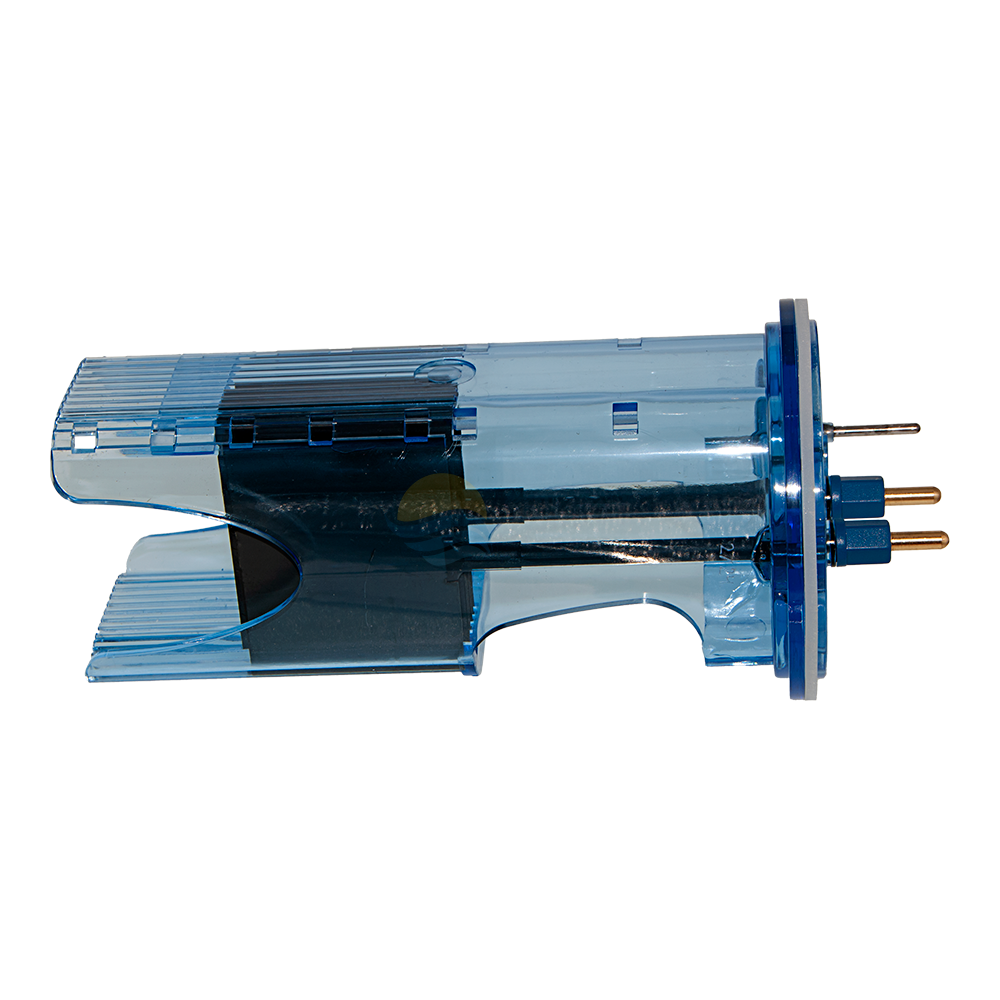

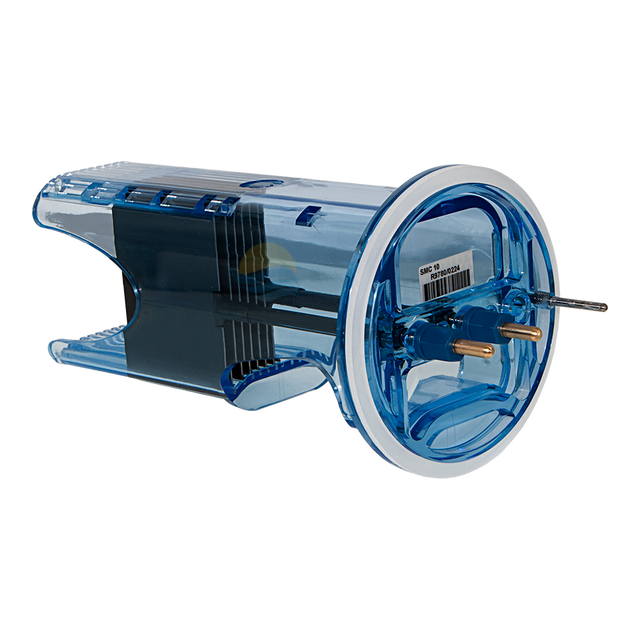

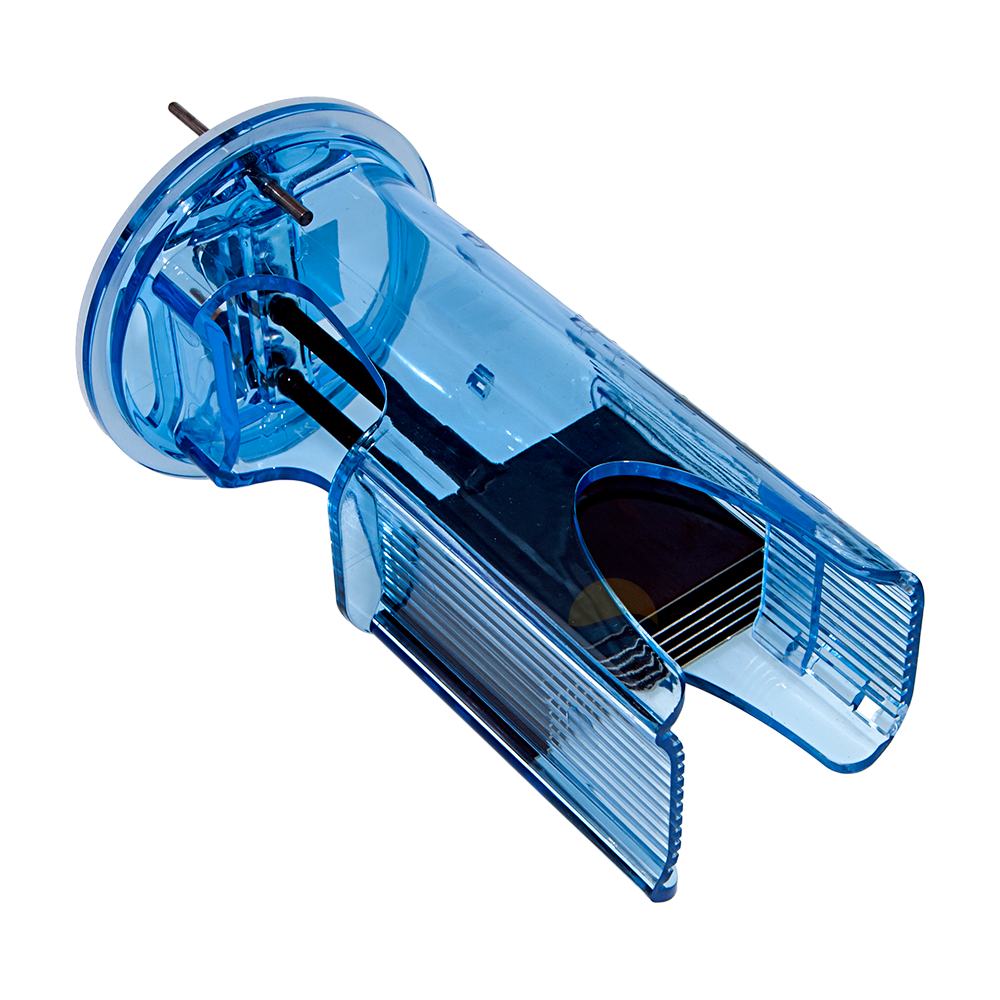

Bipolar cell for SMC10 salt chlorinator of the Innowater brand.
• Original spare part.
• Terminals for metallic/plastic installation.
• Does not include carrier cup or locking nut.
Innowater SMC10 bipolar cell is backordered and will ship as soon as it is back in stock.
Transit time 4 - 7 days
Description
Description
Bipolar cell for SMC10 salt chlorinator from the Innowater brand.
Original spare part from the manufacturer Innowater. Compatible with Innowater SMC chlorinator models.
The Innowater SMC10 cell is equipped with 7 titanium plates, each measuring 60 mm x 65 mm and 1 mm thick.
IMPORTANT: This cell is supplied with metal type 2 terminals. Ask us if your old cell has one of the other two terminal models; in some of these cases it may be necessary to change the connection cable between cabinet and cell.
SMC cell types of connection terminals
| SALINE CHLORATOR CELLS INNOWATER SMC RANGE |
CELLSMC10 | CELLSMC15 | CELLSMC20 | CELLSMC30 | CELLSMC50 |
|---|---|---|---|---|---|
 |
|
|
|
 |
|
| For chlorinator. | SMC10 | SMC15 | SMC20 | SMC30 | SMC50 |
| Chlorine production. (g/h.) | 10 | 15 | 20 | 30 | 50 |
| Cell measurements. (cm.) (length x width x diameter) | 19 x 6.5 x 10.5 | 19 x 6.5 x 10.5 | 19 x 6.5 x 10.5 | 19 x 6.5 x 10.5 | |
| Titanium plates. | 7 | 7 | 13 | 13 | 7 |
| Plate size. (mm.) | 60x65x1 | 90x65x1 | 60x65x1 | 90x65x1 | |
| Compatible with chlorinators. | SMC10 | SMC15 | SMC20 | SMC30 | SMC50 |
Swipe horizontally to see all information on mobile devices.
