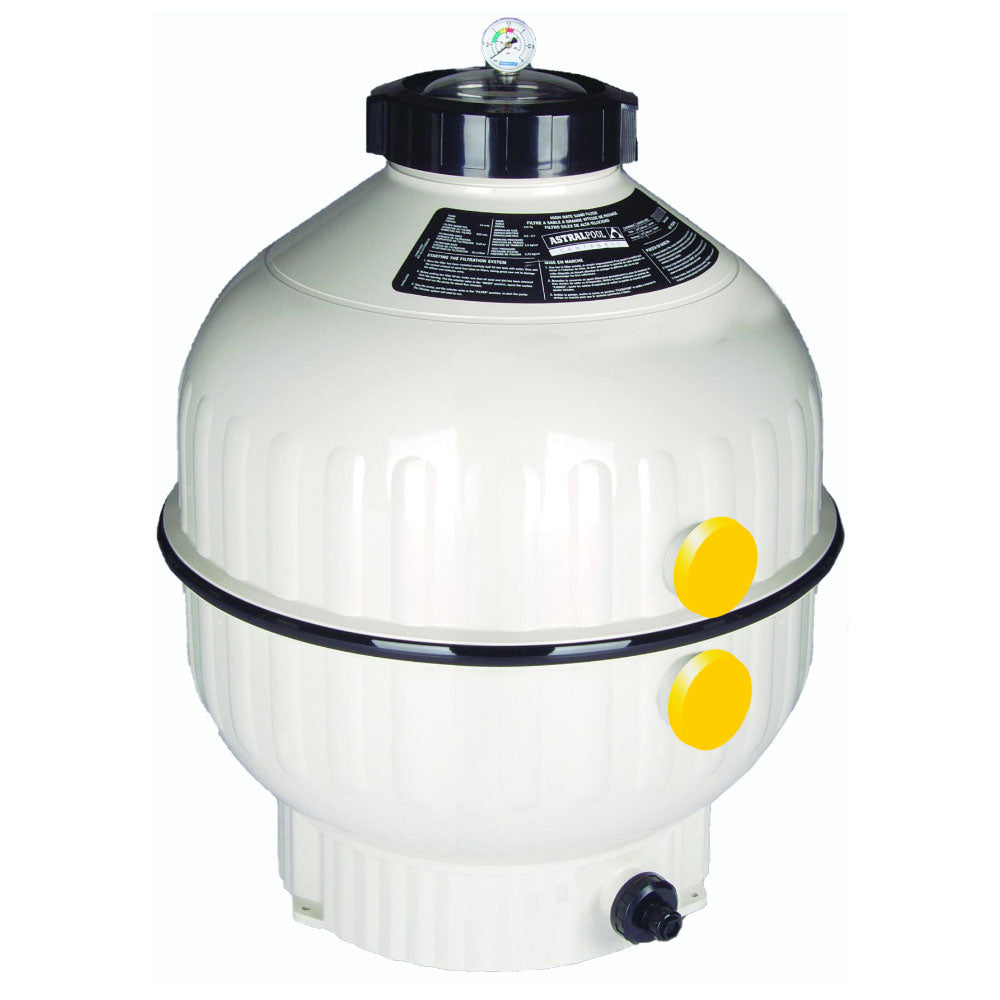

CANTABRIC FILTER Ø 600 SIDE S/VALV 1 ½"

Filter injected in technical plastics. Ivory color. Union of the upper and lower part of the filter by thermal welding. Equipped with pressure gauge, manual water and air purges. Selector valve included. Max speed filtration of 50 m3/h/m2. Maximum working pressure: 2.5 kg/cm2. Threaded filter cover in ABS plastic material. FEATURES: - Available with side or top outlet according to your convenience and the space available for your location. - Filter body made of unalterable plastic resistant to chemical and atmospheric agents. Made to work outdoors. - Equipped as standard with the AstralPool 6+1-way selector valve, 1 1/2" for diameters 400 mm, 500 mm and 600 mm, 2" for diameter 750 mm and 2 1/2" for diameter 900 mm, with bayonet closure, for filtration, washing, rinsing, recirculation, emptying, closing and wintering, all entrances and exits are communicated). - Transparent cover to facilitate visual inspection and access to the interior of the filter in the case of a side valve. - Collector and diffuser for continuous performance. - Manual air bleed to remove air from inside the filter if necessary. - Incorporates a 3/4" manual water drain in the sand drain plug of the filter to facilitate drainage without loss of sand. - 1 1/2" sand purge for diameters of 400 mm, 500 mm and 600 mm and 2'' for diameters of 750 mm and 900 mm. - In its lower part, it incorporates a collector with arms to ensure a balanced flow and washing of the filter. - Pressure gauge to control filter washing. - Integrated base in the lower half of the filter, with holes for its correct attachment to the ground. - Larger mouth 225 mm to facilitate handling and loading of sand in diameters of 900 mm. For the rest of the range, the upper mouth is 177 mm. ADVANTAGES: - Easy drainage. No loss of sand through a manual water drain incorporated into the sand drain plug. - Functionality. years. It should also be taken into account that it incorporates AstralPool's characteristic 6+1-way selector valve for filtration, washing, rinsing, recirculation, emptying and closing. - Innovative design, AstralPool has taken care to create a new image for its Cantabric filters, resulting in a product with an attractive and innovative design both for its ivory color and its shapes, without forgetting its adaptability to location needs. - Wide range. Cantabric filters provide the ideal solution for a wide variety of pool sizes, since they adapt to the filtration needs for capacities ranging from 30 to 240 m3 with flow rates of 6,000 l/h to 30,000 l/h, with a filtration speed of 50 m3/h/m2 MONOBLOC: Cantabric Monobloc Ø 400 with Top valve and Sena pump Now. There is also the Cantabric in a "monobloc" version! It greatly facilitates the installer's work by offering a compact, reliable solution with an attractive design. - It incorporates an injected polypropylene base that follows the aesthetics of the filter, without losing robustness and functionality - The base is mounted right next to the filter (the filter continues to rest directly on the ground) completely excluding the possibility of breakage of the base, caused by the weight of the filter. - The monobloc is supplied with the 1/3 HP Sena pump (other pumps can technically be attached).
